Electric Motors

State-of-the-Art. Purpose-built. Proven.

Innovative, high-performance electric motors for heavy industry

FLANDERS has engineered significant breakthroughs in industrial electric motor technology based on over 70 years of experience troubleshooting, repairing, and rebuilding them. We’ve developed over 50 distinct motor designs and have hundreds of custom industrial electric motors in service worldwide, including

AC induction motors
AC synchronous motors
AC wound rotor motors
DC motors and generators
Motor-generator sets

FLANDERS offers 1–10,000+ horsepower electric motors of every size, RPM, torque, and duty.

Specialized electric motors for severe duty

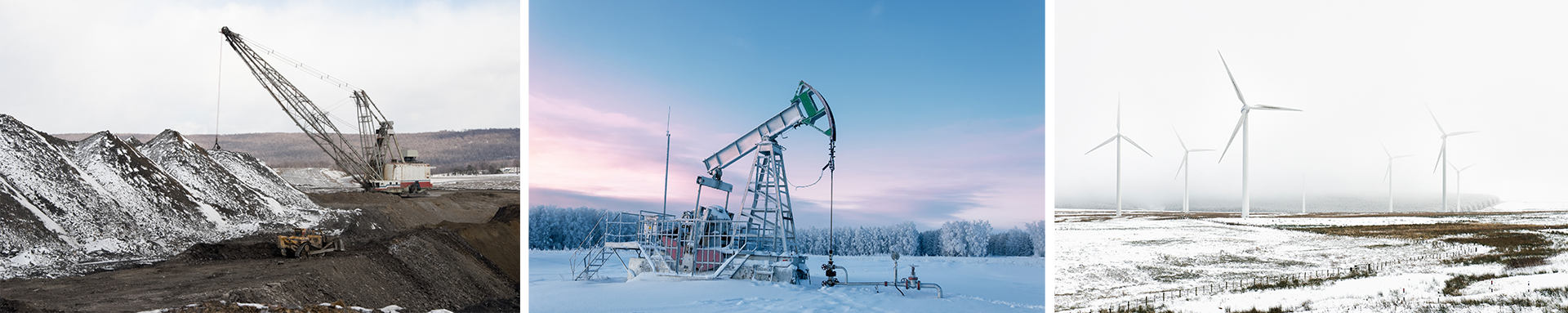

We make electric motors for the world’s largest machines and harshest operating conditions. This includes everything from dragline motors with zero-to-200% load cycles of 150 metric tons—sometimes operating at -30℃—to 10,000 HP main stand motors for steel mills.

You can achieve performance improvements of up to 30% with FLANDERS motors for severe-duty applications.

FLANDERS manufacturing innovations

In our quest to improve industrial electric motors, we’ve implemented vertically integrated manufacturing and developed numerous innovations in motor designs, materials, and processes:

Standard, Class H (180°C) insulation
Higher-performing Class R (220°C) insulation available for severe applications where insulating materials, including VPI resin qualifies for Class S (240°C)
An improved Vacuum Pressure Impregnation (VPI) armature insulation system with greater dielectric strength, thermal conductivity, and resistance to moisture and chemicals
In-house commutator design and manufacturing utilizing improved alloys
Proprietary processes for wet winding field coils, to enhance performance

While each FLANDERS innovation has measurable benefits, it’s the sum of the parts that puts FLANDERS motors in a tier above the rest.

FLANDERS high-performance motors

We offer four lines of FLANDERS industrial electric motors that run stronger and longer than conventional motors.

MAC Motors

New AC motors for machine upgrades and DC conversions

Our FLANDERS-original, built-for-purpose AC motors will take your machine’s performance to a new level.

Depending on your machine and application, upgrading from DC to AC can improve machine performance by as much as 30%. Our MAC motors—which drop into your machine’s current AC frame footprint—take those performance gains even further by using:

Tighter tolerance
Inverter-duty rated insulation systems
Higher speeds, starting torque, and torque ratings
Modular design for ease of repair
VFD/VSD bearing protection
And other technology enhancements

These application-specific motors also feature design improvements to address common points of failure in a given machine. These are purpose-built FLANDERS motors, backed by our industry-leading warranties.

M Motors

Drop-in AC and DC motor upgrades with greater horsepower and reliability

With our M Motor offering, we upgrade your current AC or DC motor using FLANDERS-engineered components and tighter process standards to increase the horsepower, reliability, and lifespan of your machines. M Motor upgrade options include, but are not limited to:

Insulation system enhancements
Cooling system modifications for airflow improvement
Upgraded mechanical components (shaft, bearings, spider, end rings, etc.)
Optimized applied voltages and current densities for improved magnetic profile

FLANDERS M Motor upgrades require no modifications to the existing motor frame.

FLANDERS M Motors for mining shovels deliver up to 60% gains in peak power, compared to conventional systems (2000 vs. 1250).

ME Motors

Severe-duty DC motors for heavy industrial applications

The groundbreaking innovations in our ME 800- and 1000-series motors set new performance benchmarks for DC motors in severe-duty applications.

By using tighter tolerances, improved armatures, better coil insulation, and proprietary manufacturing processes, we reduce circulating currents inside the machine to achieve greater efficiency, more horsepower, and higher peak power.

Built to standard AISE-equivalent frame sizes, our factory-new DC motors are a great way to get more production out of your current machines.

For force-ventilated machines, you can boost the torque of your ME Motors by ~12% by over-exciting the fields.

Custom motors

Designed, engineered, and custom manufactured for your exact needs

We can develop higher-performance AC or DC motors—from concept to commissioning—for heavy industrial machines and unique applications of any kind. We’ll work closely with you and pay special attention to solution context to make sure that what we develop meets your exact needs and standards.

There is no job too big for FLANDERS. And whether it’s a clean-sheet design, re-engineering an obsolete system, or eliminating weaknesses in a conventional design, a FLANDERS motor is your assurance of cost-effective reliability and outstanding performance.

Contact us if you have a special project in mind.

There’s no substitute for field expertise when it comes to motors for heavy industry

There’s too much complexity in heavy industry to have an off-the-shelf mentality; you’ve got to understand the whole context. Our field engineers bring a lot of value to our clients because of our in-depth knowledge of not just motors and drives but also machines and applications.

Stringent motor QA and testing

We have quality processes and test to the most stringent motor performance standards in the industry. Our custom manufacturing capabilities enable us to manufacture motors to tighter tolerances than most companies, playing a big role in the exceptional level of quality we deliver.

FLANDERS has our own 5.1 MW dynamometer facility for testing large-scale industrial motors, and we black band test every FLANDERS motor to optimize the magnetics. The extra measures we take to fine tune our motors before they leave the shop means commissioning goes much faster when we’re onsite at your operation.

And we’re as rigorous in testing motors that we repair or rebuild as we are in testing factory-new motors.

Motors we distribute

As part of our extensive motor offerings, we also carry a wide range of reliable industrial motors:

ABB: Baldor/Reliance
Century: AO Smith - Essex
Hyundai
Leeson - EIS
Lincoln

Marathon
NIDEC
North American
Siemens

Sterling
Toshiba
U.S. Worldwide
VEM
WEG

We’ve chosen the motors we carry for their quality and reliability, and all new motors that we carry are fully warrantied by the original manufacturer.

Motor Exchange Program

Reduce overhead by having us carry your backup motor inventory

With our motor exchange program, for a set fee we’ll keep backup motors reserved for you in our inventory, ready for rapid delivery and installation if we need to pull your current motors for in-shop work.

After we do the motor exchange, we restore the original motor to like-new condition and you cover the costs of those repairs, just as you would if we were going to reinstall the original motor in your machine.

Our Motor Exchange Program keeps your operation running with less overhead burden.

Cooling system upgrades

As part of upgrading your liquid cooled drives, we can also upgrade your cooling systems. In the case of DC to AC dragline upgrades for example, we upgrade the machine from an air-cooled to a liquid-cooled system, enabling us to seal the housing for grit-free operation and eliminating the need for filters that need to be changed.

Contact our motors team

Improve production and reduce operational costs with better motors

We’d love to help improve your industrial operation with better electric motors that are exactly right for the application and your performance criteria.

Contact us
